Description

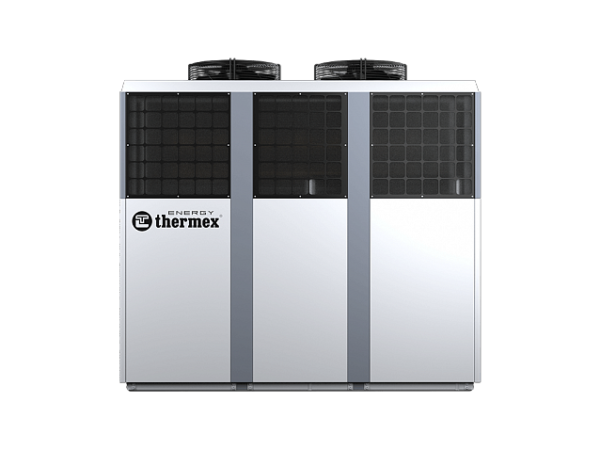

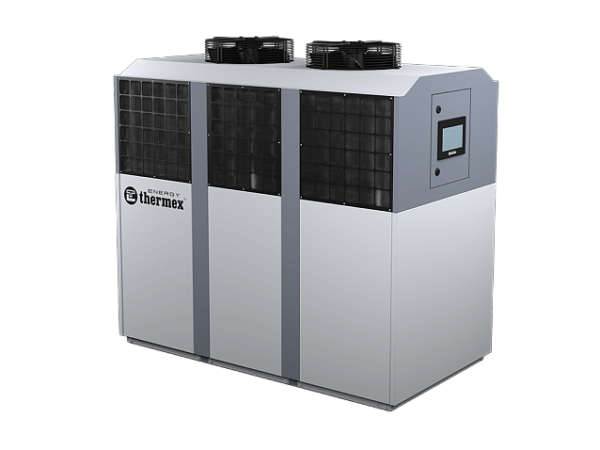

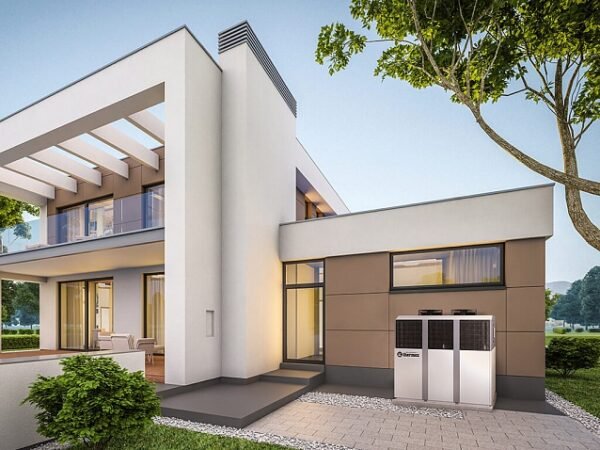

Monoblock outdoor air-to-water chiller MACC with adiabatic condenser cooling is designed for an accurate, reliable and highly efficient cooling solution for residential and commercial buildings in the regions with dry hot climate.

12 models with cooling output from 9.0 to 146.1 kW (Eurovent requirements: inlet / outlet water temperature 12/7 °C, outdoor air temperature 35 °C).

Key features

·         Inverter hermetic scroll compressors

·         Axial fans with frequency control

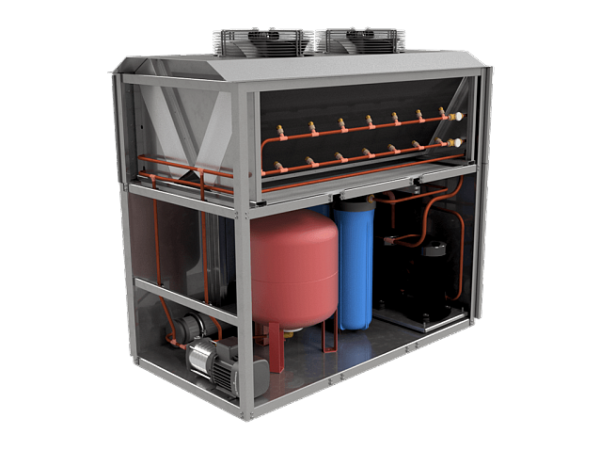

·         Adiabatic condenser cooling system

·         Built-in reverse osmosis system

·         Sound-insulated metal case

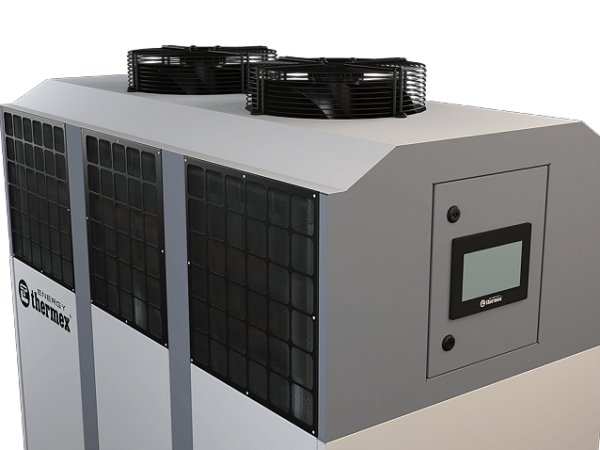

·         Control via color touch screen

·         Modbus and BACnet protocols

Advantages

High efficiency

Invertor compressors with smooth power regulation in the range from 10 to 100% and EC axial fans allow precise adaptation to the current cooling power demand and reduce energy consumption

Ready for high temperatures

The adiabatic condenser cooling system allows to keep high efficiency at high outdoor temperatures, and the built-in reverse osmosis system for water purification ensures the durability and reliability of the equipment

Quiet operation

Low noise level due to high-quality casing and compressors sound insulation, installation of enlarged fans and the function of reducing the fan speed during the night time

Easy to use

Full local control via color touch screen, connection to supervisory systems via Modbus and BACnet protocols, quick system restart

Options available

Integrated hydraulic module, partial heat recovery for water heating, heat exchangers with anti-corrosion coating for installation in coastal areas, individual casing color

Key specifications

·         12 models with cooling output from 9.0 to 146.1 kW (Eurovent requirements: inlet / outlet water temperature 12/7 °C, outdoor air temperature 35 °C).

·         EER coefficient: up to 3,29

·         Number of compressors: 1-3

·         Refrigerant type: r410a

·         Operating temperature range of outdoor air: from +10°C to +52°C

·         Coolant temperature: from +5°C to +15°C

·         Rated voltage: 400V 3N ~ 50 Hz

·         Dimensions (Width / Depth / Height): 1000/750/1400 mm, 1400/750/1400 mm, 1800/750/1400 mm
