Description

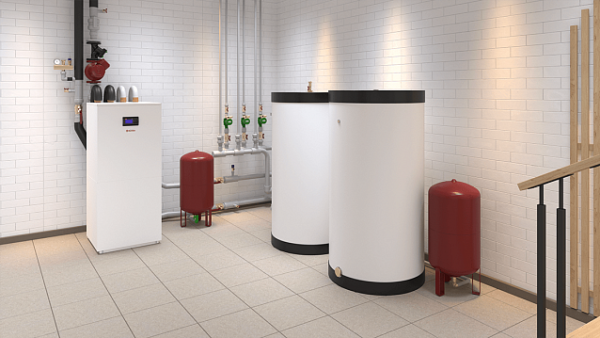

Thermex Energy Pro is a series of two-compressor ground source heat pumps designed for heating, hot water heating and cooling in small, medium and large residential, commercial and industrial buildings up to 1400 sq.m. 8 models with nominal heating output (B0/W35) from 15.6 to 56,0 kW.

Key advantages

• 4-in-1 solution: heating, hot water heating, cooling, swimming pool heating
• Increased efficiency and saving: weather-compensated regulation, complex of technical and software solutions
• Scalable solution: ability to cascade up to 16 heat pumps
• High reliability: built-in thermal circuit protections, voltage monitoring relay, RCD, 2-stage overload blocking system, circuit breakers for all elements, comprehensive testing of each product
• Convenient control: monitoring and configuration of key parameters and heat pump operation modes in the mobile app and on the controller screen

Functionality

• 2 independent heating circuits control
• 2 modes of hot water heating (constantly / only at night)
• Passive/active cooling
• Swimming pool water heating
• Weather-compensated regulation
• Second heating source control
• Hot water thermal disinfection
• Remote control (mobile app)

Key components items

• 2 modern scroll compressors
• Plate heat exchangers
• Complete electrical preparation
• 2-stage overload blocking system
• Controller with graphic screen
• Pack of built-in electrical protections
• Built-in thermal circuit protections

Key specifications

• 8 models in the range with nominal heating output (B0/W35) from 15.6 to 56.0 kW
• Number of compressors: 2
• Refrigerant type: R407c
• Maximum coolant temperature: 62°С
• Heat source temperature range: from -5°С to +15°С
• Rated voltage: 400V 3N ~ 50 Hz
• Dimensions (Width / Depth / Height): 615/600/1500 mm
